Jilin Songyuan 133 Pipeline Polyurethane Wooden Bracket Manufacturer Our factory mainly produces air-conditioning wooden support, pipe wooden support, insulation wooden support, cold storage wooden support, pipeline skid, thermal insulation skid
Duct chocks, PEVA rubber and plastic pipe brackets and pipe iron clips, pipe clamp holding U-shaped pipe clamps, double-bolt flat steel pipe clamps, reference double-bolt pipe clamps, single pipe clamps, double pipe clamps, three pipe clamps, Four pipe clamps, GJ steel pipe clamps, etc. This product is suitable for the installation of air-conditioning pipelines and the installation of fixed pipelines with oil, water, and gas as the medium of mechanical fluids such as metallurgy, petroleum, chemical industry, vehicles, ships, and electric power.
The products of our factory are mainly sold to major cities, and some of the products are sold abroad. Its air-conditioning wooden supports and pipe wooden supports
The main raw materials are red pine wood, poplar wood and willow wood, and the thickness and the thickness of the insulation layer can reach plus or minus two. It can also be customized according to customers
Need to customize special-shaped and non-model pipe chocks,
Jilin Songyuan 133 pipeline polyurethane wood pallet wood manufacturer thermal insulation

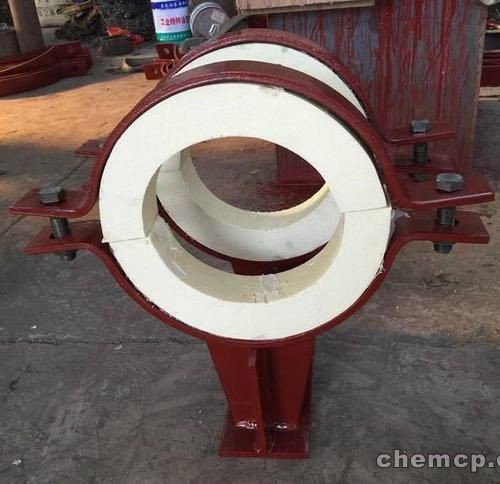

1. Raw materials for air-conditioning wooden support series products: mainly red pine, poplar, willow, and rubber-plastic panels. The surface of the product has been treated with anticorrosive asphalt 7 infiltration and waterproofing. It has the characteristics of mothproof, non-absorbent, shockproof, heat insulation, heat preservation and so on. Equipped with an anti-rust treated galvanized snap ring, it is easy to construct, economical and beautiful.
2. Purpose of pipe wooden brackets and air-conditioning wooden bracket series products: specially installed under the heat preservation or cold preservation pipe racks to play the role of heat preservation or cold preservation. The heat/cold energy of the heat preservation or cold preservation pipes will be transferred to the structural beams through the support base, so that the heat/cold capacity will be lost. The installation of the thermal insulation wooden support can isolate the pipeline and the structural beam, prevent the loss of heat and cold, and at the same time play the role of damping and buffering heat.
3 Pipeline wooden brackets, air-conditioning wooden support series product scope of application: this product is used in large-scale shopping malls air-conditioning wooden support, indoor welded pipes in buildings, seamless steel pipes, fire-fighting pipes, metallurgy, petroleum, chemical, vehicles, ships, electric power and other mechanical fluids The pipes with oil, water, and gas as the medium are fixedly installed and connected.
4. The shape of the air-conditioning wooden support series: square circle, full circle, square, sawtooth, wooden block, arc 45 degrees, 60 degrees, 120 degrees, 180 degrees, etc. can be made according to customer requirements.
5. Air conditioning wooden support series product specifications: Φ27, 34, 43, 48, 60, 76, 89, 108, 133, 159, 165, 219, 273, 325, 377, 426, 480, 530, 630, 720, 820 , 916, 1020 and other models.
6. Air conditioning wooden support series product model: 30*30mm 40*40mm 50*50mm 60*60mm 80*80mm 100*100mm 150*150mm 200*200mm 250*250mm
Cold-insulating wooden blocks are mainly used for laying and erecting chemical energy pipelines. They are specially installed on the support seat under the heat-insulating or cold-insulating pipe frame, and then the wooden blocks are clamped with double-bolt pipes. Because the cold energy of the cold insulation pipe may be transmitted to the structural beam through the support base, 1 add wood blocks to prevent the cold energy from spreading.
